Description

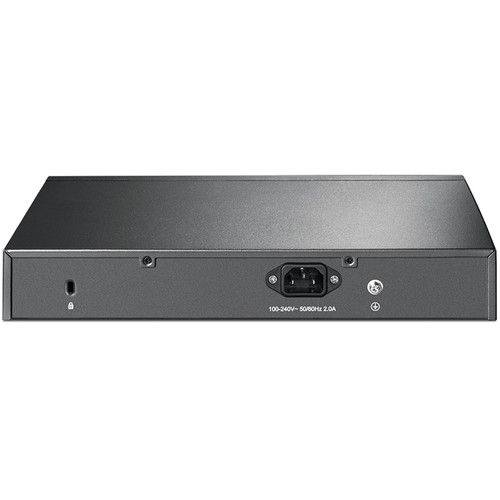

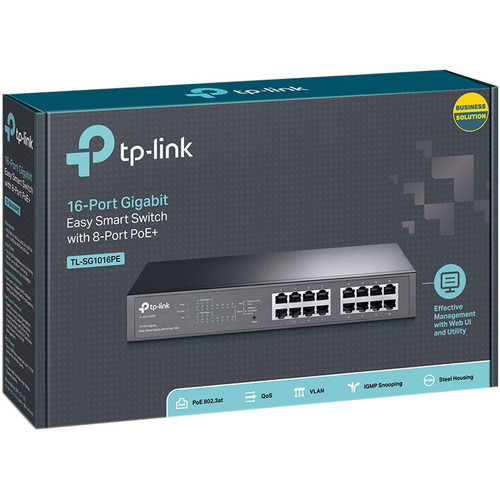

The TP-Link TL-SG1016PE 16-Port Gigabit PoE+ Managed Switch supports the 802.3af/at PoE standard, enabling it to power various PoE devices like IP cameras, IP phones, and access points efficiently. By connecting PoE-compliant devices to any of the sixteen Gigabit Ethernet ports, you can power them directly through the network. The switch boasts a 32 Gb/s switching capacity, 23.8 Mb/s forwarding rate, an 8K MAC address table, and 9KB jumbo frame. This ensures seamless operation under heavy network loads, making it ideal for demanding network environments.
Additional information
| Weight | 5.05 lbs |
|---|---|
| Dimensions | 15.9 × 9.9 × 3.25 in |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Jumbo Frame | 9 KB |
| System Requirements | Microsoft Windows for running Utility |
| Certifications | FCC, CE, RoHS |
| Transmission Method | Store-And-Forward |
| Management | Web-based GUI<br> |
| VLAN | Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs)<br> |
| L2 Services | IGMP Snooping V1/V2/V3<br> |
| Quality of Service (QoS) | Support Port-Based/802.1p/DSCP priority<br> |
| Packet Memory Buffer | 4.1 Mbit |
| Interface | 16 x 10/100/1000 Mb/s RJ-45 ports<br> |
| MAC Address Table | 8 K |
| Packet Forwarding Rate | 23.8 Mb/s |
| Switching Capacity | 32 Gb/s |
| PoE Ports | Standard: 802.3at compliant<br> |
| Power Consumption | Maximum: 124.4 W (220 V/50 Hz) |
| Power Supply | 100-240 VAC, 50/60 Hz |
| Fan Quantity | 1 |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 328' / 100 m)<br> |
| Temperature & Humidity | Operating Temperature<br> |
