Description

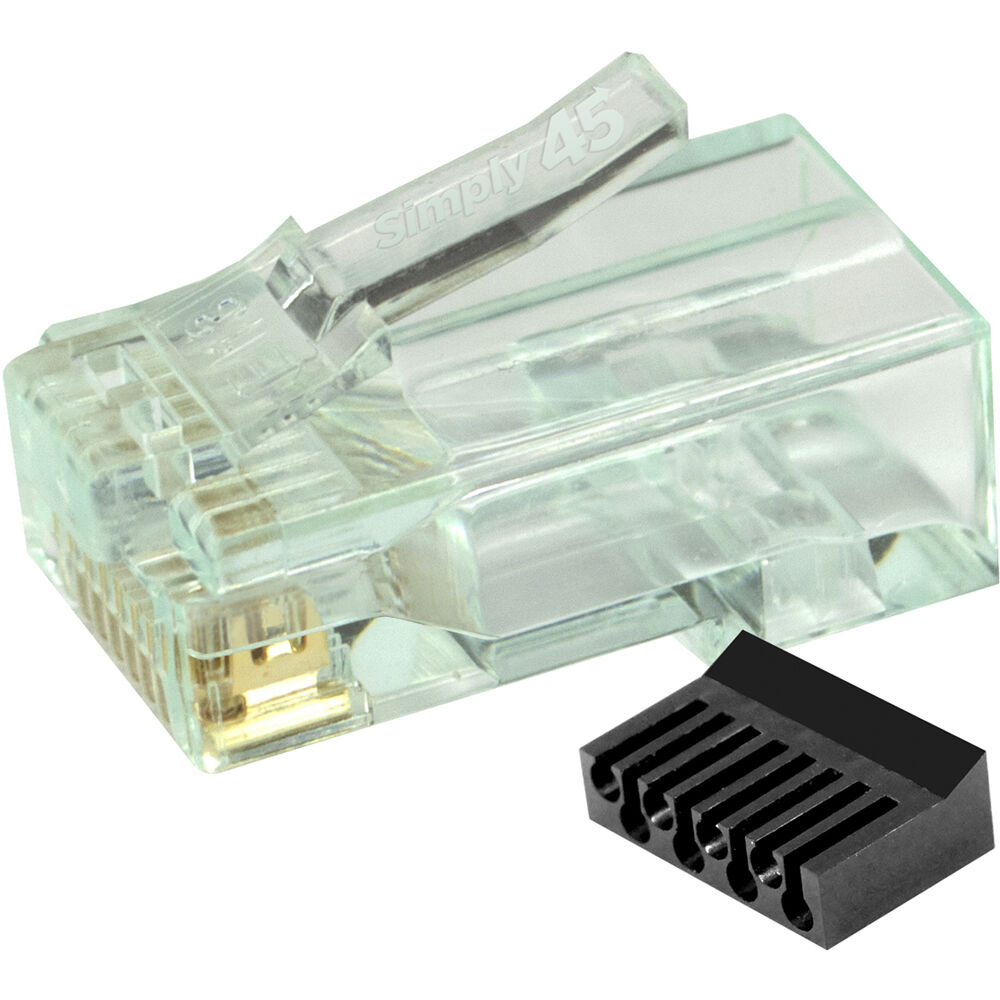

Designed for shielded twisted pair (STP) LAN cables, these Simply45 Cat 5e/6/6a STP Shielded RJ45 Modular Plugs offer reliable connections for 24 AWG solid and 28-26 AWG stranded cables up to 0.24″ in diameter. With 50μ 24kt gold plating, they ensure high electrical conductivity and a strong connection. The 50-piece jar offers convenient storage and is compatible with Cat 5e, Cat 6, and Cat 6a LAN cables, including those for PoE and PoH devices.
Additional information
| Weight | 0.37 lbs |
|---|---|
| Dimensions | 3.15 × 2.55 × 2.55 in |
| Type | RJ45 Male |
| Quantity | 50 |
| Contact Plating | 50 µ Gold<br />100 µ Nickel |
| Contact Material | Bronze |
| Shielded | Yes |
| Conductor Diameter | 0.04" / 1.05 mm |
| Contact Resistance | 20 milliohms |
| Supported Cable Diameter | 0.2" / 6.1 mm |
| Wire Gauge Supported | 24 to 28 AWG |
| Cable Types Supported | Solid, Stranded |
| Networking Type | Cat 5e, Cat 6, Cat 6a |
| Plug Material | Polycarbonate |
| Compliance | RoHS, UL, FCC |
| Flame Resistance Rating | UL94V-0 |
| Mating Cycles | 2000 |
| Operating Temperature | -40 to 158°F / -40 to 70°C |
