Description

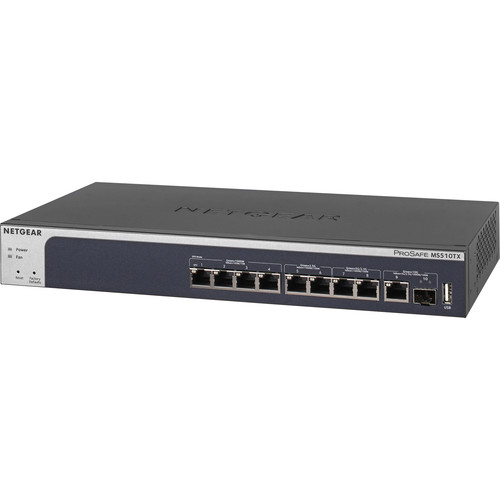

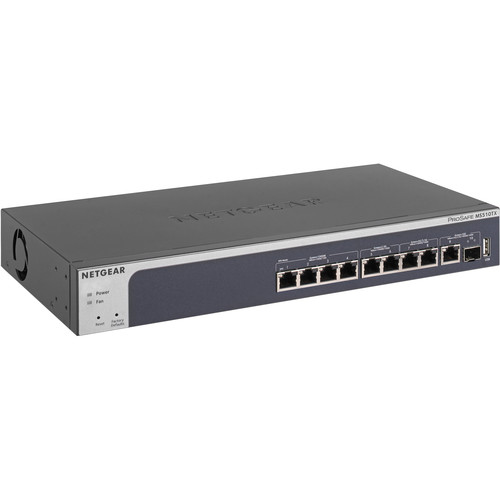

NETGEAR MS510TX 8-Port Gigabit Managed Switch for High-Speed Networking
Designed to support data transfer rates greater than 1 Gbps, the NETGEAR MS510TX 8-Port Gigabit Managed Switch is ideal for connecting multiple devices, servers, workstations, and storage devices that require high-bandwidth connectivity.
Key Features:
- Eight 10M/100M/1G RJ-45 copper ports for versatile device connectivity
- Two 100M/1G/2.5G RJ-45 copper ports and two 100M/1G/2.5G/5G RJ-45 copper ports for multi-speed support
- Dedicated 100M/1G/2.5G/5G/10G RJ-45 copper port and 1G/10G SFP+ (fiber) port for high-speed connections
- Built-in USB port for easy firmware updates and configuration file uploads
- Extensive VLAN support and L2/L3/L4 access control lists for enhanced network security
- Advanced QoS services for port-based, 802.1p, and L2/L3/L4 DSCP-based traffic prioritization
- Web-based management GUI and dual firmware images for simplified network management and reduced downtime
The NETGEAR MS510TX switch is designed to provide a robust and reliable networking solution for businesses and organizations. With its advanced features and high-speed connectivity options, this switch is perfect for environments that require high-bandwidth and low-latency networking.
By incorporating the NETGEAR MS510TX into your network infrastructure, you can enjoy improved network performance, enhanced security, and simplified management. The switch’s advanced QoS services ensure that critical applications receive the necessary bandwidth, while its VLAN support and access control lists provide an additional layer of security and network segmentation.
Whether you’re looking to upgrade your existing network infrastructure or build a new one, the NETGEAR MS510TX 8-Port Gigabit Managed Switch is an excellent choice. Its combination of high-speed connectivity, advanced features, and reliable performance make it an ideal solution for businesses and organizations of all sizes.
Additional information
| Weight | 5.1 lbs |
|---|---|
| Dimensions | 18.2 × 9 × 3.3 in |
| Ports | 10M/100M/1G RJ-45 Copper Ports<br> 4<br> 100M/1G/2.5G RJ-45 Copper Ports<br> 2<br> 100M/1G/2.5G/5G RJ-45 Copper Ports<br> 2<br> 100M/1G/2.5G/5G/10G RJ-45 Copper Ports<br> 1 (dedicated)<br> 1G/10G SFP+ (Fiber) Ports<br> 1 (dedicated)<br> USB Port (for config file upload/backup & firmware updates)<br> Yes |
| QoS (Quality of Service) | Port-based rate limiting<br> Ingress and egress<br> Port-based QoS<br> Yes<br> Support for IPv6 fields<br> Yes<br> DiffServ QoS<br> Yes<br> IEEE 802.1p COS<br> Yes<br> Destination MAC and IP<br> Yes<br> IPv4 and v6 DSCP<br> Yes<br> IPv4 and IPv6 ToS<br> Yes<br> TCP/UDP-based<br> Yes<br> Weighted Round Robin (WRR)<br> Yes<br> Strict priority queue technology<br> Yes<br> Auto-VoIP VLAN / Auto-Voice VLAN<br> Yes, based on OUI bytes (default database and user- based OUIs) in the phone source MAC address, voice packets must have 802.1Q VLAN tag<br> Auto-VoIP<br> Yes, based on protocols (SIP, H.323 and SCCP). Prioritizes traffic to a higher queue<br> Voice VLAN<br> Yes<br> Auto-Video VLAN<br> Yes |
| Electromagnetic Emissions & Immunity | CE: EN 55032:2012+AC:2013/CISPR 32:2012, EN 61000-3-2:2014, Class A, EN 61000-3-3:2013, EN 55024:2010<br> VCCI : VCCI-CISPR 32:2016, Class A<br> RCM: AS/NZS CISPR 32:2013 Class A<br> CCC: GB4943.1-2011; YD/T993-1998; GB/T9254-2008 (Class A)<br> FCC: 47 CFR FCC Part 15, Class A, ANSI C63.4:2014<br> ISED: ICES-003:2016 Issue 6, Class A, ANSI C63.4:2014<br> BSMI: CNS 13438 Class A |
| Environmental Specifications | Operating Temperature<br> 32 to 122°F / 0 to 50°C<br> Operating Humidity (relative)<br> 90% maximum (RH), non-condensing<br> Operating Altitude<br> 10, 000' / 3, 000 m maximum<br> Storage Temperature<br> -4 to 158°F / -20 to 70°C<br> Storage Humidity (relative)<br> 95% maximum (RH), non-condensing<br> Storage Altitude<br> 10, 000' / 3, 000 maximum |
| Power Consumption | Max power (worst case, all ports used, line-rate traffic) (Watts)<br> 26.1 W<br> Min power (link-down standby) (Watts)<br> 10.19 W<br> Heat Dissipation (max and min) (BTU/hr)<br> Max: 89.06 BTU<br> Min: 34.77 BTU<br> Energy Efficient Ethernet (EEE) IEEE 802.3az<br> Yes (deactivated by default)<br> Power back-off<br> Drops power consumption by 15% to 20% when short copper cables are detected<br> Auto power down<br> Drops power consumption when no connection<br> Fan<br> 1 |
| LED Indicators | Per port<br> Speed, Link, Activity<br> Per device<br> Power and Fan |
| Management | Password management<br> Yes<br> Configurable management VLAN<br> Yes<br> Admin access control via RADIUS and TACACS+<br> Yes<br> IPv6 management<br> Yes<br> SNTP client over UDP port 123<br> Yes<br> SNMP v1/v2c<br> Yes<br> SNMP v3 with multiple IP addresses<br> Yes<br> RMON group 1, 2, 3, 9<br> Yes<br> Port mirroring<br> Yes<br> Many-to-one port mirroring<br> 8<br> Web browser-based graphical user interface (GUI)<br> Yes<br> Smart Control Center (SCC) for multi-switch management<br> Yes<br> Dual software (firmware) image<br> Yes<br> Dual configuration file<br> Yes<br> Cable test utility<br> Yes<br> SSL/HTTPS Web-based access (version)<br> Yes (v2)<br> TLS Web-based access (version)<br> Yes (v1.0 ~ v1.2)<br> File transfers (uploads, downloads)<br> TFTP / HTTP<br> HTTP upload/download (firmware)<br> Yes<br> Syslog (RFC 3164)<br> Yes<br> USB port for firmware and config upload / download<br> Yes |
| IEEE Network Protocols | • IEEE 802.3 Ethernet<br> • IEEE 802.3u 100BASE-T<br> • IEEE 802.3ab 1000BASE-T<br> • IEEE 802.3an 10GBASE-T 10Gbps Ethernet Over Copper Twisted Pair Cable<br> • IEEE 802.3ae 10-Gigabit Ethernet Over Fiber (10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-LX4) – All models<br> • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX<br> • IEEE 802.3x Full-Duplex Flow Control<br> • IEEE 802.1Q VLAN Tagging<br> • IEEE 802.3ad Trunking (LACP)<br> • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED)<br> • IEEE 802.1p Class of Service<br> • IEEE 802.1D Spanning Tree (STP)<br> • IEEE 802.1s Multiple Spanning Tree (MSTP)<br> • IEEE 802.1w Rapid Spanning Tree (RSTP)<br> • IEEE 802.1x RADIUS Network Access Control<br> • IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Network Security | IEEE 802.1x<br> Yes<br> Guest VLAN<br> Yes<br> RADIUS-based VLAN assignment via .1x<br> Yes<br> MAC-based .1x<br> Yes<br> RADIUS accounting<br> Yes<br> Access Control Lists<br> (ACLs) L2 / L3 / L4 ingress<br> IP-based ACLs (IPv4 and IPv6)<br> Yes<br> MAC-based ACLs<br> Yes<br> TCP/UPD-based ACLs<br> Yes<br> MAC lockdown<br> Yes<br> MAC lockdown by the number of MACs<br> Yes<br> Control MAC # Dynamic learned entries<br> 600<br> Control MAC # static entries<br> 600<br> IEEE 802.1x RADIUS port access authentication<br> Yes<br> Port-based security by locked MAC addresses<br> Yes<br> Dynamic ARP inspection<br> Yes<br> Broadcast, multicast, unknown unicast storm control<br> Yes<br> DoS attacks prevention<br> Yes |
| Performance | Packet Buffer Memory<br> (Dynamically shared across only used ports)<br> 1.5 MB<br> Forwarding Modes<br> Store-and-forward<br> Bandwidth<br> 78 Gbps<br> 1G Copper Latency (64 byte packet size)<br> |
| Network Monitoring and Discovery Services | 802.1ab LLDP<br> Yes<br> SNMP<br> v1, v2c, v3<br> RMON group 1, 2, 3, 9<br> Yes |
| Link Aggregation | IEEE 802.3ad – LAGs (LACP)<br> Yes<br> Manual Static LAG<br> Yes<br> # of Static or LACP LAGs<br> # of members in each LAG<br> 8 LAGs with max 8 members in each LAG |
| L3 Services - Routing | IPv4 static routing<br> 32<br> IPv6 static routing<br> 32<br> VLAN routing<br> Yes<br> Host ARP table (number of entries)<br> 512<br> Number of IP VLAN interfaces (routed VLANs)<br> 32 |
| L3 Services - DHCP | DHCP client<br> Yes<br> DHCP snooping<br> Yes |
| L2 Services - Multicast | IGMP snooping (v1, v2 and v3)<br> Yes<br> MLD snooping support (v1 and v2)<br> Yes<br> IGMP snooping queries<br> Yes<br> Block unknown multicast<br> Yes |
| L2 Services - Availability | Broadcast, multicast, unknown unicast storm control<br> Yes<br> IEEE 802.3ad – LAGs (LACP)<br> Yes<br> IEEE 802.3x (full duplex and flow control)<br> Yes<br> IEEE 802.1D Spanning Tree Protocol<br> Yes<br> IEEE 802.1w Rapid Spanning Tree Protocol<br> Yes<br> IEEE 802.1s Multiple Spanning Tree Protocol<br> Yes |
| L2 Services (VLANS) | IEEE 802.1Q VLAN tagging<br>Yes<br> IP-based VLANs<br> Yes<br> MAC-based VLANs<br> Yes<br> Auto-VoIP VLAN / Auto-Voice VLAN<br> Yes, based on OUI bytes (default database and user-based OUIs) in the phone source MAC address, voice packets must have 802.1Q VLAN tag<br> Auto-VoIP<br> Yes, based on protocols (SIP, H.323 and SCCP). Prioritizes traffic to a higher queue<br> Voice VLAN<br> Yes<br> Auto-Video VLAN<br> Yes<br> Private VLAN<br> Yes |
| Safety Approvals | CB report / certificate IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013<br> UL listed (UL 1950)/cUL IEC 950/EN 60950<br> CE LVD: EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013<br> RCM (AS/NZS) 60950.1:2015<br> CCC (China Compulsory Certificate): GB4943.1-2011; YD/T993-1998; GB/T9254-2008 (Class A)<br> BSMI: CNS 14336-1 |
