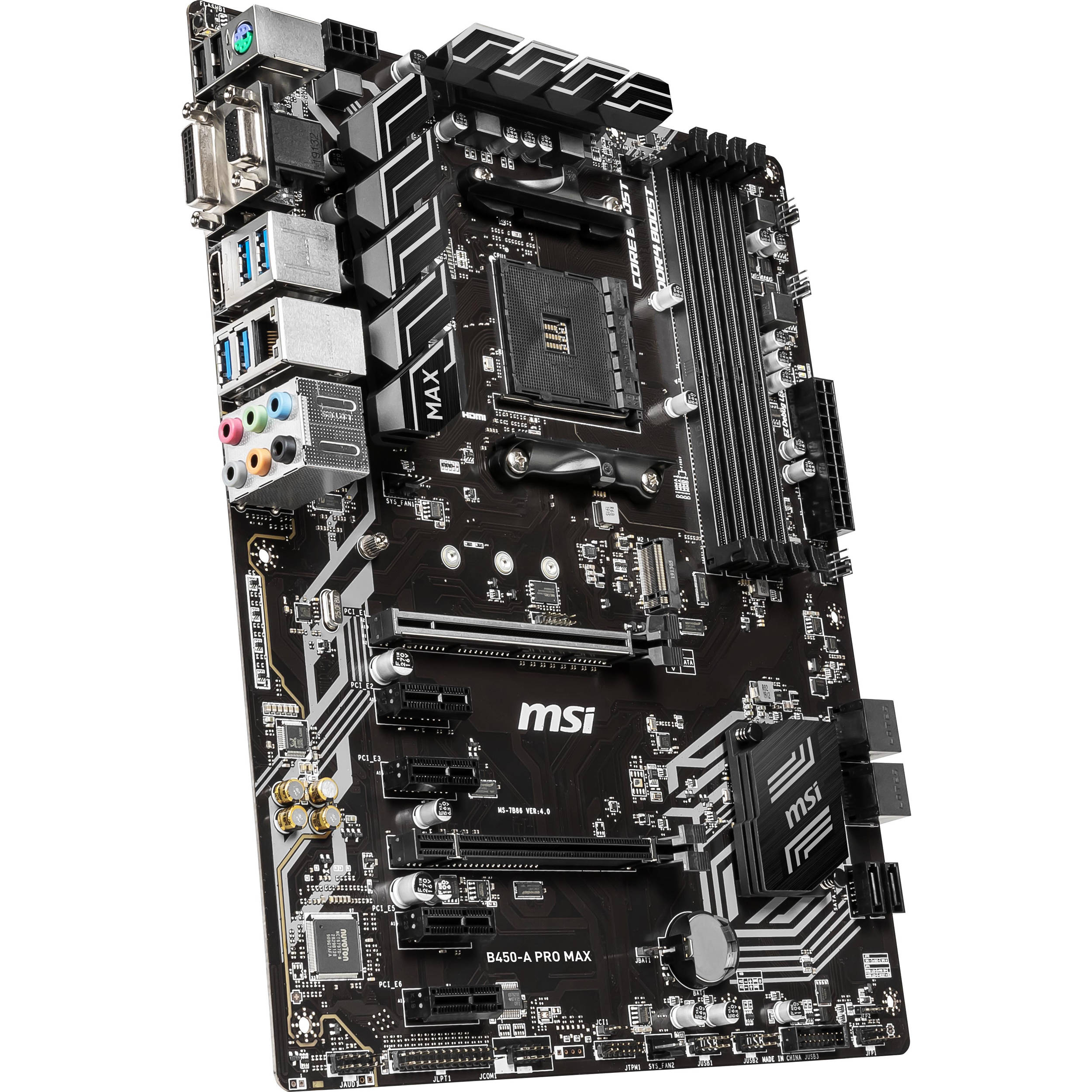

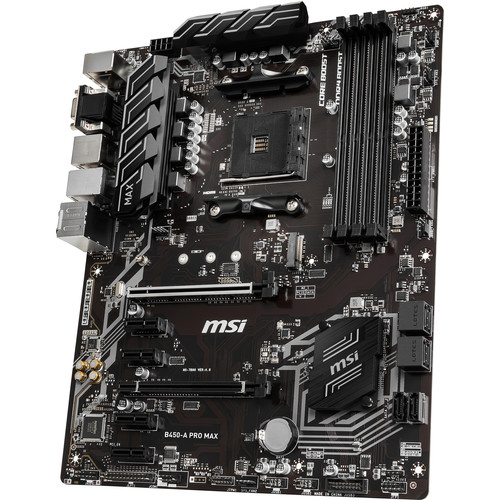

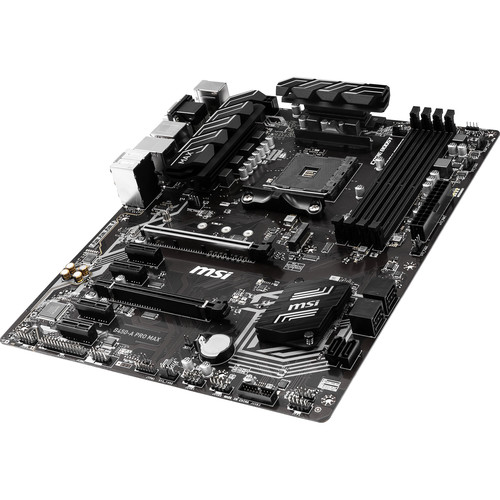

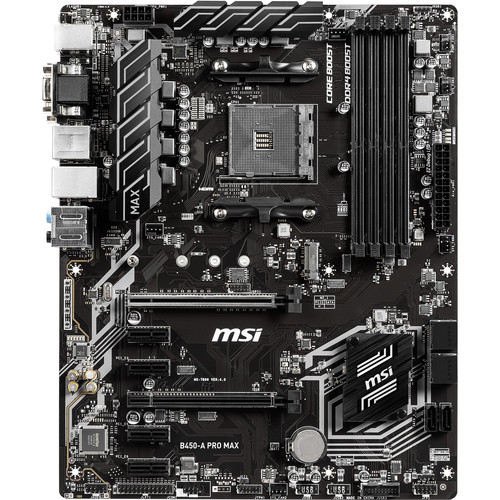

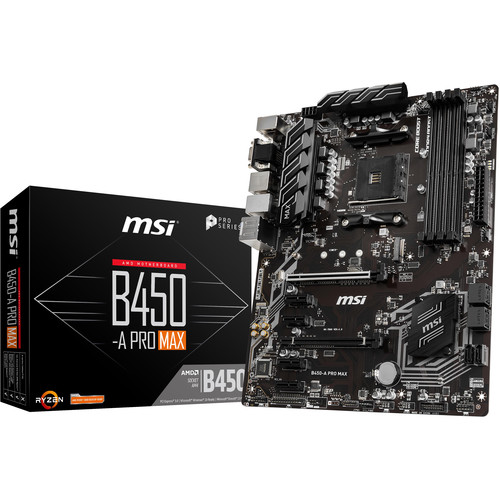

MSI B450-A PRO MAX AM4 ATX Motherboard – High Performance for Gaming
Built on the reliable AMD B450 chipset, the MSI B450-A PRO MAX AM4 ATX Motherboard is designed to unlock the full potential of 3rd generation AMD Ryzen processors with its AM4 socket. Whether you’re a gamer or a content creator, this motherboard provides the robust performance and advanced features you need.
Key Features:
- Memory Support: Four DIMM slots support up to 64GB of DDR4 RAM, overclockable to 4133 MHz for enhanced multitasking and gaming performance.
- Storage: Six SATA III ports and an M.2 slot with PCIe 3.0 x4 interface provide ample storage options for your files and applications.

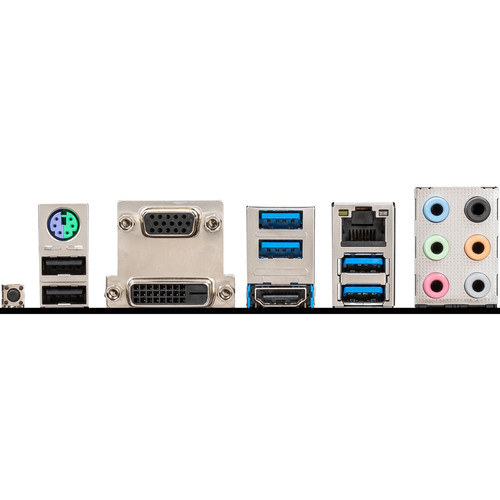

- Graphics: Integrated graphics outputs include DVI-D, VGA, and HDMI. Additionally, a PCIe 3.0 x16 slot is available for a dedicated graphics card, ensuring smooth graphics performance.
- Audio and Networking: Realtek ALC892 7.1-Channel HD Audio and Realtek 8111H Gigabit LAN deliver immersive audio and fast, stable networking.
- Enhanced Durability: PCIe Steel Armor protects your GPUs from bending and EMI, ensuring a stable and reliable connection.
- Performance Boosters: Core Boost, DDR4 Boost, and Turbo M.2 enhance overall system performance. A USB 3.2 Gen 2 connector provides fast data transfer.
Future-Proofing: Although this motherboard does not currently support AMD Ryzen 5000 series processors, support will be added via a BIOS update in January 2021, ensuring compatibility with the latest hardware.
The MSI B450-A PRO MAX AM4 ATX Motherboard is engineered to provide a solid foundation for your gaming rig or workstation, combining performance, durability, and advanced features.
Additional information
| Weight | 2.65 lbs |
|---|---|
| Dimensions | 13.58 × 10.58 × 2.58 in |
| Chipset | AMD B450 |
| M.2 | 1 x M Key 2242, 2260, 2280, 22110 |
| Audio Codec | Realtek ALC892 (7.1-Channel) |
| Diagnostics | Clear CMOS |
| LED Header | 1 x RGB |
| Security | TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin CPU |
| Liquid Cooling | 1 x 4-Pin Pump |
| Air Cooling | 1 x 4-Pin CPU<br />4 x 4-Pin System |
| Multi-GPU Support | 2-Way AMD CrossFireX |
| Expansion Slots | 1 x PCIe 3.0 x16<br />1 x PCIe 2.0 x16<br />4 x PCIe x1 |
| RAID Support | RAID 0, 1, 10 |
| U.2 | None |
| SATA | 6 x SATA III |
| CPU Socket | AM4 |
| ECC Support | Non-ECC, ECC (Non-ECC Mode) Unbuffered |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 64 GB |
| Memory Support | DDR4 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133 MHz |
| Memory Slots | 4 x 288-Pin |
| Buttons | BIOS Flashback |
| Legacy | 1 x Parallel<br />1 x Serial |
| PS/2 | 1 x Combo |
| Ethernet / Controller | 1 x Realtek 8111H Gigabit |
| Display | 1 x HDMI 1.4<br />1 x DVI-D <br />1 x VGA |
| USB | 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)<br />2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
| Form Factor | ATX |
