Description
Powerful Storage for Creators

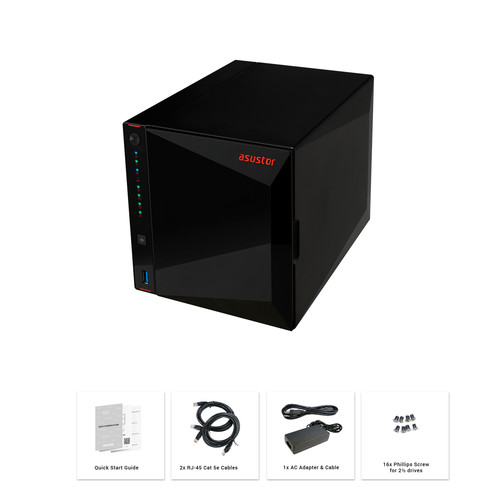

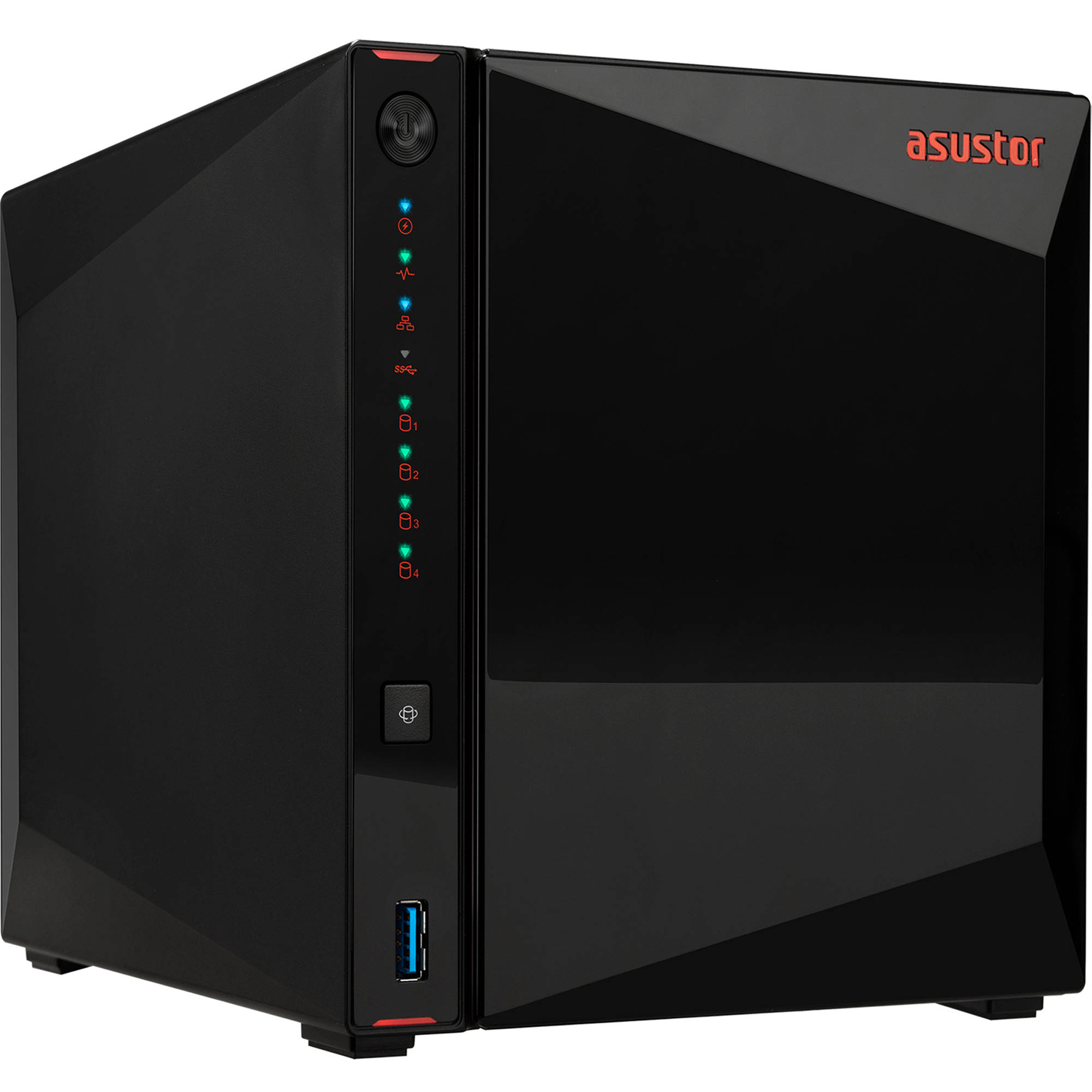

Designed for live streaming and content creation, the Asustor AS5304T 4-Bay NAS Enclosure offers robust storage and high-speed connectivity. Powered by a 1.5 GHz Intel Celeron J4105 Quad-Core processor and 4GB of DDR4 RAM (expandable to 8GB), it delivers efficient performance for demanding tasks.
Key Features:
- High-Speed Connectivity: Dual 2.5 Gigabit Ethernet ports for up to 5 Gb/s speeds via link aggregation
- Ample Storage: Four 3.5″/2.5″ SATA III drive bays with RAID 0, 1, 5, 6, 10, and JBOD configurations
- Expandability: Supports up to three AS6004U expansion units for a total of 16 drive bays
- Advanced Media Capabilities: 10-bit HEVC/VP9 4K hardware decoding for smooth video playback
- Secure Data: AES 256-bit encryption for protecting sensitive data
- Versatile Connectivity: HDMI 2.0a output and three 5 Gb/s USB 3.2 Gen 1 ports
The AS5304T is ideal for content creators and live streamers who require high-performance storage, fast data transfer, and advanced media handling. With its comprehensive feature set and expandability, it provides a reliable foundation for growing storage needs. Backed by a 3-year limited warranty, it ensures peace of mind for your valuable data.
Additional information
| Weight | 7.53 lbs |
|---|---|
| Dimensions | 12.7 × 9.6 × 8.3 in |
| CPU | 1.5 GHz Intel Celeron J4105 Quad-Core (Maximum Boost: 2.5 GHz) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Max Cameras Supported | 36 |
| Installed Operating System | ADM 3.4 |
| Supported File Systems | Internal: BTRFS, EXT4<br />External: BTRFS, EXT3, EXT4, FAT32, HFS+, NTFS, exFAT |
| OS Compatibility | macOS 10.6 or Later<br />Windows 10<br />Windows 8<br />Windows 7<br />Windows Server 2012<br />Windows Server 2008<br />Windows Server 2003<br />Windows Vista<br />Windows XP<br />UNIX<br />Linux |
| Supported Browsers | Chrome, Edge, Firefox, Internet Explorer, Safari |
| Supported Languages | Czech<br>Danish<br>Dutch<br>English<br>Finnish<br>French<br>German<br>Hungarian<br>Italian<br>Japanese<br>Korean<br>Norwegian<br>Polish<br>Portuguese<br>Russian<br>Simplified Chinese<br>Spanish<br>Swedish<br>Traditional Chinese<br>Turkish |
| Encryption | 256-Bit AES |
| Power Source | AC Adapter |
| Max Groups | 512 |
| Power Consumption | 27 W (Typical)<br />12.6 W (Idle)<br />1.4 W (Standby) |
| PSU Wattage | 1 x 90 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 5 to 95% |
| Certifications | BSMI, C-Tick, CE, FCC, VCCI, as per Manufacturer |
| Status Monitoring | LED Indicator |
| Cooling | 1 x 120 mm Fan |
| Max User Accounts | 4096 |
| Max Folders | 512 |
| GPU | Intel UHD Graphics 600 |
| Compatible Drive Interface | SATA III |
| Total Installed Memory | 4 GB 2400 MHz DDR4 |
| User-Replaceable Memory | 1 x 4 GB |
| Total Memory Slots | 2 x SO-DIMM |
| Maximum Memory Capacity | 8 GB |
| Flash Memory | 4 GB eMMC |

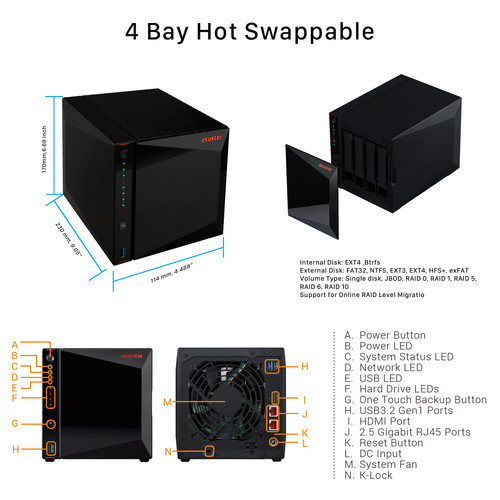

| Number of Bays | 4 x 2.5"/3.5" |
| Connections | 2 x RJ45 (Ethernet)<br />3 x USB Type-A (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s))<br />1 x HDMI Type-A (HDMI 2.0a) |
| Media Card Slots | None |
| Max Concurrent Connections | 512 |
| Form Factor | Desktop |
| RAID Modes | RAID 0, 1, 10, 5, 6, JBOD |
| Hot-Swap Support | Yes |
| Wake on LAN | Yes |
| Link Aggregation and Failover Support | Yes |
| Supported Protocols | AFP<br>CIFS/SMB<br>FTP<br>HTTP<br>HTTPS<br>L2TP/IPSec<br>NFS<br>OpenVPN<br>PPTP<br>Rsync<br>SFTP<br>SMB 2.1<br>SMB 3.0<br>SNMP v1<br>SNMP v2<br>SNMP v3<br>SSH<br>SSL<br>Syslog<br>TFTP<br>WebDAV<br>iSCSI |
| iSCSI LUN | 256 |
| iSCSI Target | 256 |
| Noise Level | 19.7 dBA |
