Description

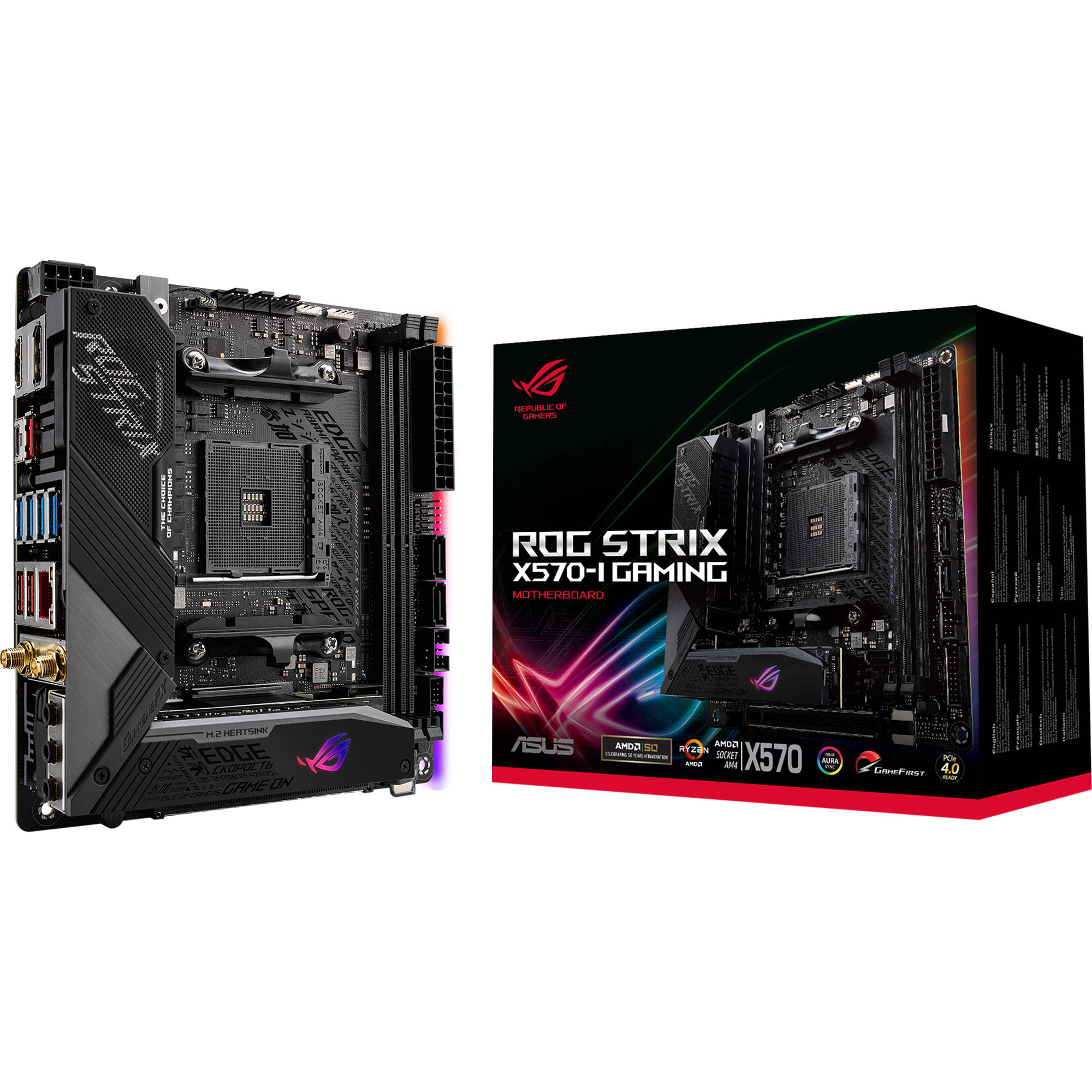

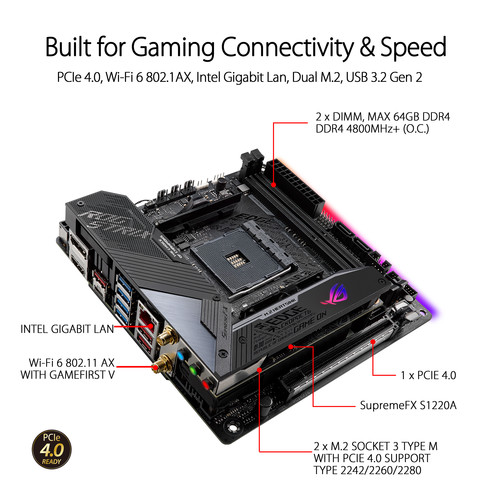

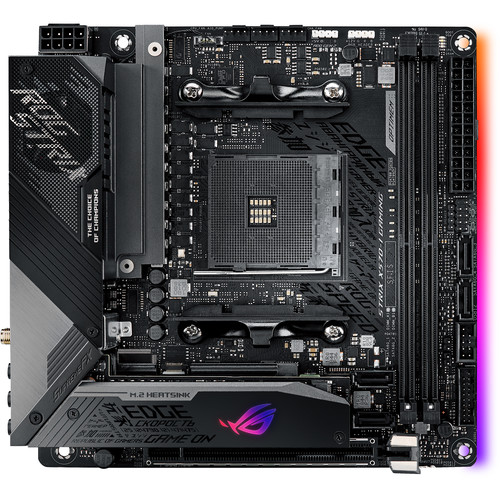

Elevate your gaming experience with the ASUS ROG Strix X570-I Gaming AM4 Mini-ITX Motherboard, engineered for high-performance gaming in compact rigs. Powered by the AMD X570 chipset, it supports the latest second- and third-generation AMD Ryzen processors via an AM4 socket, ensuring seamless performance. With its mini-ITX form factor, this motherboard packs a punch, featuring two memory slots for up to 64GB of dual-channel DDR4 RAM that can reach speeds of up to 4800 MHz when overclocked. Storage is ample, with two M.2 SSD slots alongside four SATA III connectors. The PCIe 4.0 x16 slot is ready for your graphics card, making your gaming PC action-ready. For those with Radeon Vega graphics, integrated HDMI and DisplayPort connectors are available. Customize your setup with the addressable Gen 2 Aura Sync RGB lighting header and enjoy immersive audio with SupremeFX S122A 8-Channel HD Audio. Connectivity is top-notch with a Gigabit Ethernet port and integrated 802.11ax Wi-Fi.
Additional information
| Weight | 2.85 lbs |
|---|---|
| Dimensions | 9 × 7.25 × 3.75 in |
| Chipset | AMD X570 |
| Expansion Slots | 1 x PCIe 4.0 x16 (x16 mode) |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Wi-Fi | Wi-Fi 6 (802.11ax) (MU-MIMO) |
| Bluetooth | 5.0 |
| Audio Codec | SupremeFX S1220A (8-Channel) |
| I/O Connection Headers | AAFP |
| ROM | 256 Mb |
| Diagnostics | Clear CMOS |

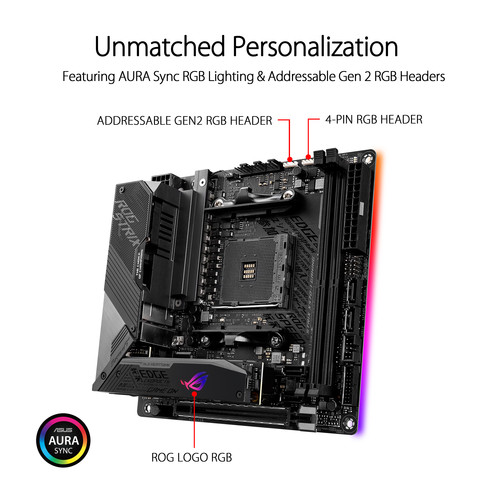

| LED Header | 2 x RGB |
| Security | TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin CPU |
| Liquid Cooling | 1 x 4-Pin Pump |

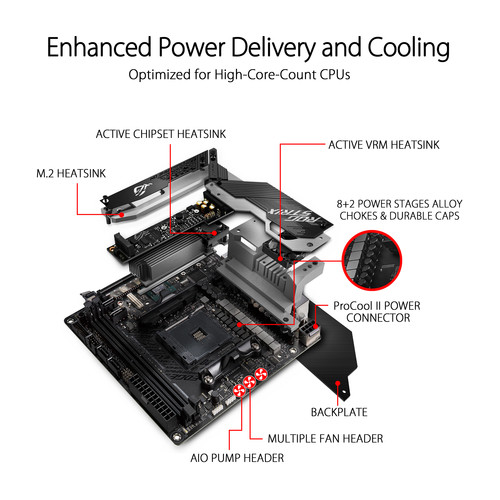

| Air Cooling | 1 x 4-Pin CPU<br />1 x 4-Pin System<br />2 x 4-Pin Assistant<br />1 x Thermal Sensor |
| Multi-GPU Support | None |
| RAID Support | RAID 0, 1, 10 |
| CPU Socket | AM4 |
| Optane Memory Support | No |
| U.2 | None |
| M.2 | 2 x M Key 2242, 2260, 2280 (PCIe 4.0 x4) |
| SATA | 4 x SATA III |
| ECC Support | Non-ECC Unbuffered |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 64 GB |
| Memory Support | DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3400, 3466, 3600, 3800, 4000, 4133, 4266, 4400, 4600, 4800 MHz |
| Memory Slots | 2 x 288-Pin |
| Wi-Fi Antenna | 2 x Connector |
| Ethernet / Controller | 1 x Intel I211-AT Gigabit |

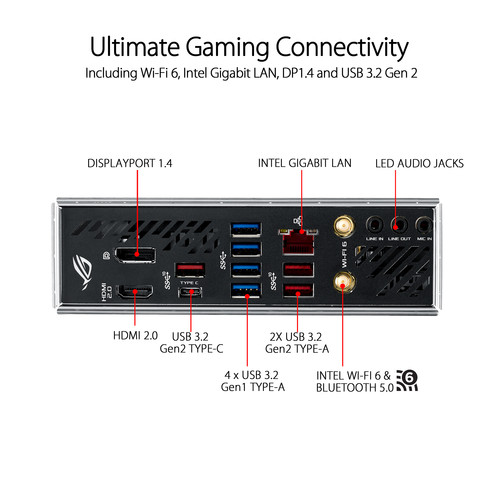

| Display | 1 x HDMI 2.0<br />1 x DisplayPort 1.4 |
| USB | 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)<br />1 x USB 2.0 Header (Supports 2 USB Type-A Port) |
| Form Factor | Mini-ITX |
