ASUS PRIME H570M-PLUS LGA 1200 Micro-ATX Motherboard for Gaming & Business – PCIe 4.0, DDR4 RAM
$90.99
Experience enhanced performance with the ASUS PRIME H570M-PLUS Micro-ATX motherboard, supporting 11th Gen Intel processors, PCIe 4.0, and DDR4 RAM for gaming and business.
In stock
Description
Whether you’re a gamer or business-focused user, the ASUS PRIME H570M-PLUS LGA 1200 ATX Motherboard offers massive flexibility and performance. With support for 11th Gen Intel processors and PCIe 4.0 technology, boost your M.2 SSD and graphics card performance.

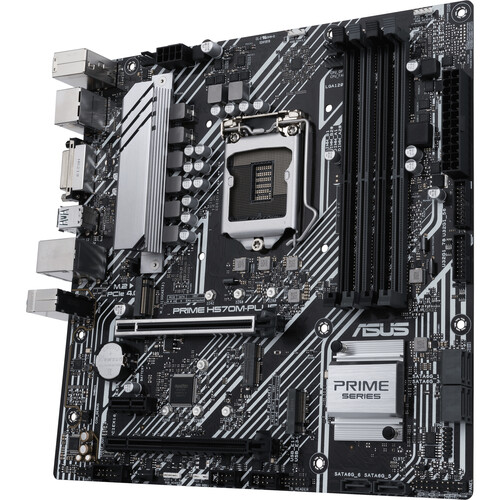

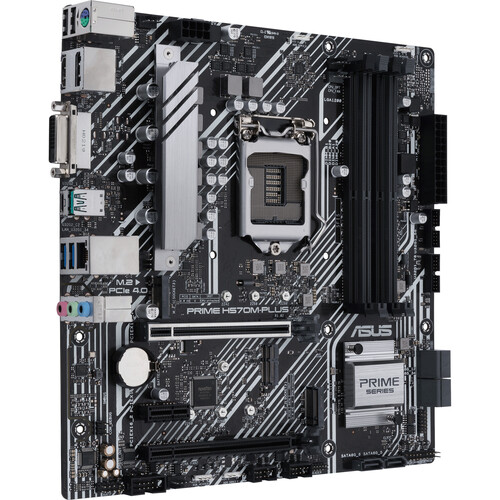

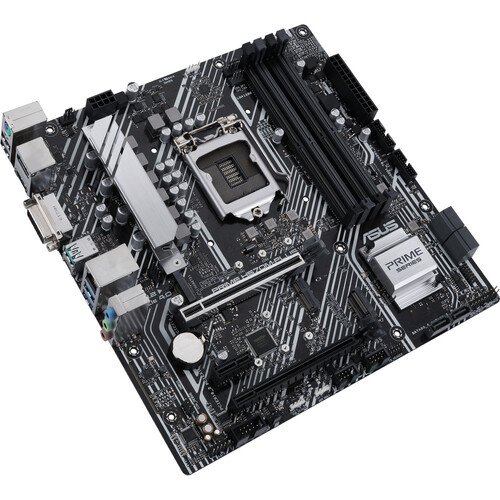

Built on the Intel H570 chipset, this motherboard features an LGA 1200 socket for 10th and 11th gen processors, four dual-channel DDR4 RAM slots for enhanced multitasking, and six SATA III and two M.2 PCIe ports for easy storage expansion. One PCIe 4.0 x16, one PCIe 3.0 x16, and one PCIe 3.0 x1 slot allow for various graphics and utility card installations. Multiple USB 3.2 Gen 1 and Gen 2 ports, a Gigabit Ethernet port, and DVD-I, HDMI, and DisplayPort outputs provide comprehensive connectivity and crisp visuals for integrated graphics systems.
Additional information
| Weight | 2.03 lbs |
|---|---|
| Dimensions | 10.6 × 10.3 × 2.2 in |
| USB | 2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)<br />2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
| Air Cooling | 1 x 4-Pin CPU<br />1 x 4-Pin Assistant<br />2 x 4-Pin System |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Audio Codec | Realtek ALC897 (7.1-Channel) |
| I/O Connection Headers | AAFP, USB 3.1 / USB 3.2 Gen 1 |
| ROM | 192 Mb |
| Legacy | 1 x Serial |
| Add-On | 1 x Thunderbolt Card Header |
| Diagnostics | Clear CMOS |
| LED Header | 4 x RGB |
| Security | Chassis Intrusion, TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin ATX |
| Liquid Cooling | 1 x 4-Pin Pump |
| Multi-GPU Support | None |
| Thunderbolt | None |
| Expansion Slots | 1 x PCIe 4.0 x16<br />1 x PCIe 3.0 x16 (x4 mode)<br />1 x PCIe 3.0 x1 |
| Optane Memory Support | Yes |
| U.2 | None |
| M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4)<br />1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4) |
| SATA | 6 x SATA III |
| ECC Support | Non-ECC Unbuffered |
| Channel Architecture | Dual Channel |
| Memory Support | DDR4 2133, 2400, 2666, 2800, 2933, 3200, 3333, 3466, 3600, 3733, 4000, 4266, 4400, 4600 MHz |
| Memory Slots | 4 x 288-Pin |
| PS/2 | 1 x Combo |
| Ethernet / Controller | 1 x Intel I219-V Gigabit |

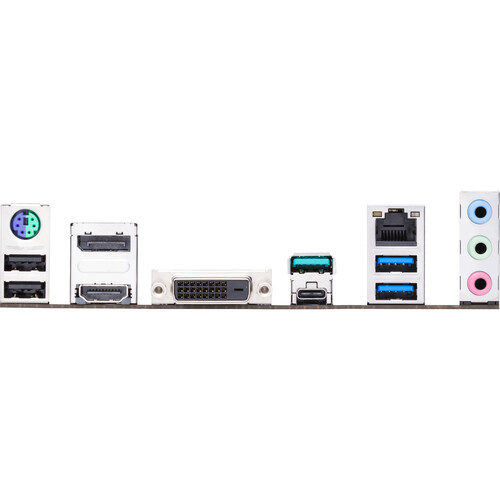

| Display | 1 x DisplayPort 1.4<br />1 x HDMI 2.0<br />1 x DVI-D |
| Form Factor | Micro-ATX |
